ARM-1L Phantom powered active ribbon microphone
(2″ ribbon)

HUM Audio Devices ARM-1L is Phantom powered active ribbon microphone equipped with 2″ long, 1.8u thick ribbon element. Output signal level is higher comparing to passive ribbon mics because of fully discrete active stage.

High-end class electronic components and manufacturing techniques allowed us to achieve very low noise floor and detailed rich sound.

It’s also equipped with switchable low cut filter (50/100 Hz)

handcrafted in poland

arm-1l-01p

Phantom powered active ribbon mic

Detailed rich sound

2″ long, 1.8u thick ribbon element

Very low self-noise

Switchable
low cut filter

Fully discrete design

price list

arm-1l user manual

reservation

Main features

Ribbon element: 2
Ribbon element: 2" long (1,8u aluminum foil)
Polar<br />
pattern:<br />
Figure-8
Polar
pattern:
Figure-8
Supply:<br />
Phantom<br />
+48V (+/- 5V)
Supply:
Phantom
+48V (+/- 5V)
Frequency response: 30Hz - 14kHz (+/-3dB)
Frequency response: 30Hz - 14kHz (+/-3dB)
Sensitivity:<br />
-38dB (1V/Pa)
Sensitivity:
-38dB (1V/Pa)
Max. SPL:<br />
137dB
Max. SPL:
137dB
Output impedance:<br />
22 Ohm<br />
(electronic)
Output impedance:
22 Ohm
(electronic)
Recommended load impedance: 150 Ohm or greater
Recommended load impedance: 150 Ohm or greater
HPF:<br />
50Hz/100Hz<br />
(6db/oct)
HPF:
50Hz/100Hz
(6db/oct)

Components

ARM-1L Microphone
Mic head dust protection cover

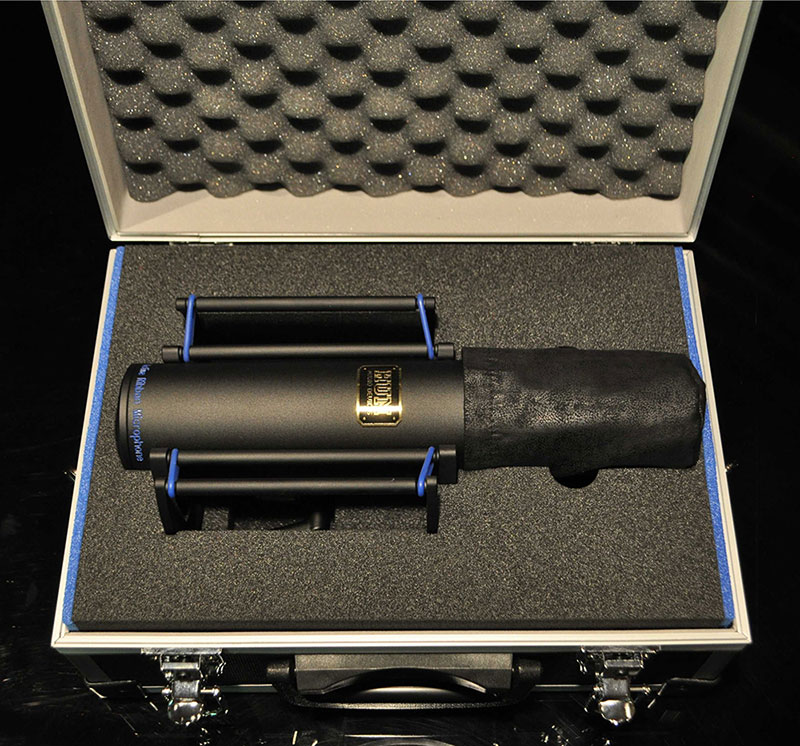

Flight case
